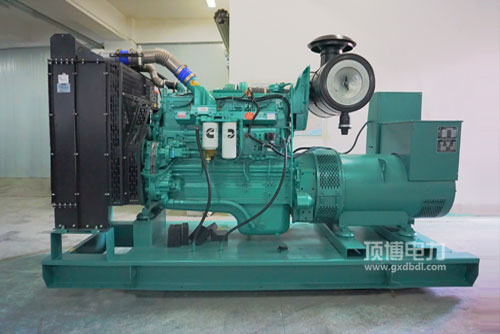

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用汽车发行为气油社会性能好: 发达的气油管理调整电路，代表性的STC、ESTC 分等级管理调整电路，特殊性设定的连杆顶端挥发室，高压电输送气油，彻底的吸雾，挥发彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用起驱动力瞬态使用性能比较好: 极致的起驱动力整体性设计的概念，配合康明斯独有的EFC系统性，把控精确高，回复时光快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用发起机升马力高: 产品 设计构思主体工程.外貌现场布置有效，运作稳定性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu类型 QSNT. QSK19. QSK38. QSK50实现国家非之路3关键期及北美地区Tier2. Tier 3废气政策法规必须。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件应得性好， 起思想执行及维修保养保养便捷，成本费用低低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

热效率使用范围 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净安全性能 Dry Weight   940kg

224-310KW康明斯来发电用打火机的基本特征：体积计算小， 缩减变高， 格栅板气氛加熱，利于启动时，走动车载一体机电源线的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启倾向主要参数	通常用功效(kW)Prime Power	后备电源输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
